(Module)OLED Film Laser Marking Equipment
This equipment utilizes laser to carry out customized laser coding on the metal reinforcement board of the FPC board connector. The equipment comprises a feeding unit, a laser cutting unit, and an unloading unit.
Equipment Advantages
-
01Inline/offline design, high space utilization
-
02High-precision visual positioning and inspection system
-
03Wide range of applicable product sizes
-
04
-
05
-
06

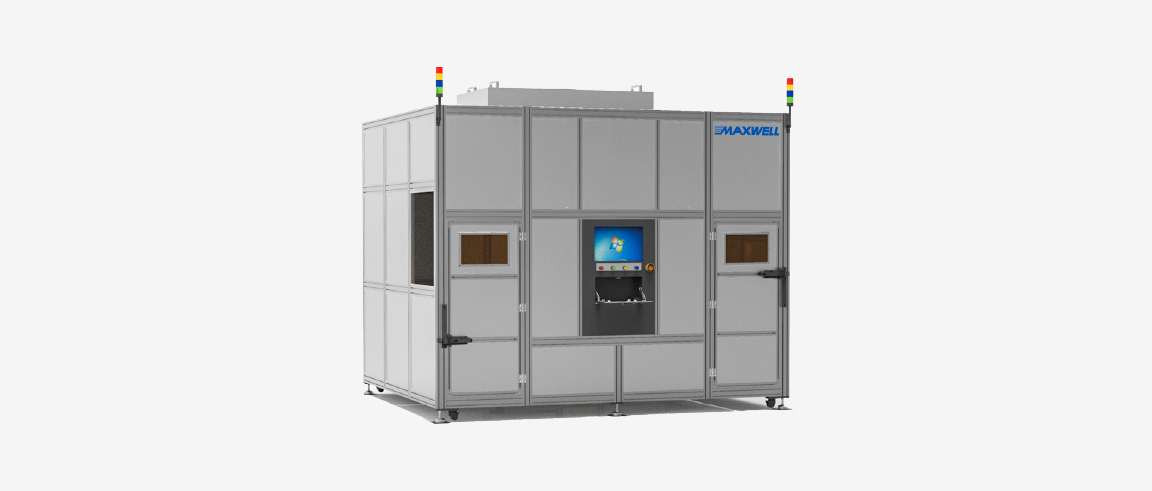

Equipment Picture
Basic Parameters
-
1. Applicable products: flexible OLED
-
2. Applicable product size: 1~8 inches(6mmx10mm~120mmx200mm)
-
3. FPC size: ≤100mm*165mm
-
4. Laser coding size: 1mm*1mm~5mm*5mm
-
5. Number of characters in QR code: Up to 30 letters and numbers.
-
6. Laser coding accuracy: ≤±0.1mm(CPK≥1.33)
-
7. Tack Time: 4.5s/cell(8 inches)
-
